Function：100% inspection of full length of inside and outside weld seams
Description:
Work Place : RT station
X-Ray Emitting Device : ISO VOLT 225HS;
Image Receiving Device : PerkinElmer flat panel detector (XRD 0822AP);
Storage: video recording or static image capture

Portable X-ray detector : portable XXG-2505 ;
Focus Size :2.5 ×2.5mm;
Thickness Range:8~28

Type： USIP40

Function Description：with a speed of 4m/min and automatic record marking; with a diameter range from 1626mm to 2500mm

Manufacturer：USA GE

Automatic UT Machine for Weld Seam inspection

Type：SUNP-L0/OFF/REP

Function Description：with a speed of 4m/min and automatic record marking; with a diameter range from 508mm to 1524mm

Manufacturer：USA GE

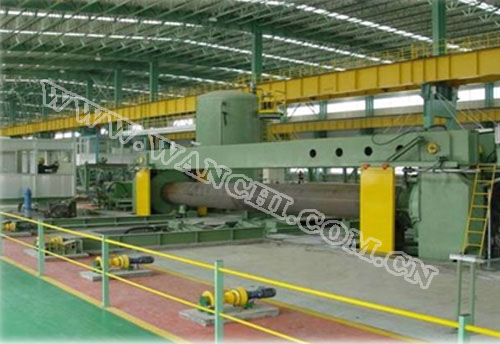

Hydrostatic Test Machine

Type：WCSP-SHYJ2032

Function Description：with a maximum load pressure 4000     Tons

Diameter Range：457mm-2032mm

Length Range：10000mm-12200mm

--------------------------------------------------------------------------------------

Type：WCSP-SHYJ2438

Function Description：?with a maximum load pressure 800 Tons Diameter Range：2438mm

Length Range：12000m

Pipe End automatic inspection machine

 Applicable Range：with a diameter of 508mm~1422mm,a thickness of 6mm-60mm and out-of-squareness≤15mm

 Measurable Items and Measurement Accuracy：pipe end out-of- roundness roundness：±0.1mminside and outside diameter：±0.1mm
circumference：±0.3mm
out-of-squareness：±0.2mm
pipe end thickness：±0.1mm
the angle of bevel, the width of root face of the bevel：±0.1mm

Weighing Machine

Type：

Function Description：
